Rocker cum Roller bearing:
The cylinder made of high-grade steel rolls over the masonry plate to allow movement of the superstructure. Roller bearings can be in form of a single roller or multiple rollers as shown in the Fig-4, a multiple roller bearing.
This bearing has both Rocker assembly and Roller assembly. Roller assembly gives translation while rocker assembly gives
rotation. These types of bearings are used seldom in new
constructions due to some demerits mentioned in the following para. However,
they still exist in a large number of old bridges.

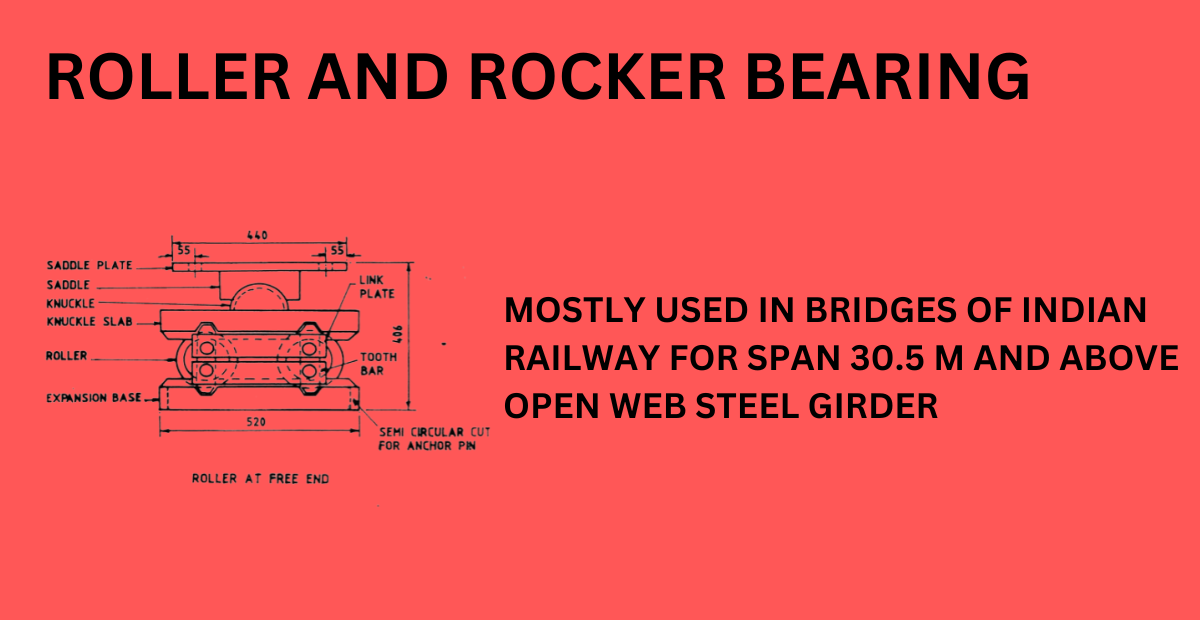

Roller bearing has a very low coefficient of friction (nearly 0.03), thereby impact of structural movement on substructure is largely reduced. A typical sketch of rocker and roller bearing for open web steel girders of 45 m span having used in the bridges of Indian Railway is shown in Fig-3, below. Such bearing exists in many numbers of old bridges in Indian Railway.
Roller bearing has a very low coefficient of friction (nearly 0.03), thereby impact of structural movement on substructure is largely reduced. A typical sketch of rocker and roller bearing for open web steel girders of 45 m span having used in the bridges of Indian Railway is shown in Fig-3, below. Such bearing exists in many numbers of old bridges in Indian Railway.
Rocker cum Roller bearing is provided on
the free end of the girder. This type of bearing is generally provided on
steel bridges. For bridges with larger
spans 30m or more, amount of movement needed and the vertical load
transmitted through each bearing is too large to select sliding bearing. In
such situation Rocker and Roller bearing is chosen. These
bearings have major advantages that it transmits least horizontal force to the
substructure provided it is cleaned, lubricated and maintained periodically.
This bearing has large movement capacity up to 100 mm.
Roller/Rocker bearing has demerits of poor seismic
response, subjected to corrosion, permitting rotation
about transverse axis only and translation in the long direction. This bearing consists of 02 parts. (Fig-3)
Rocker assembly (i.e. Saddle plate and Saddle block
rotates over knuckle) allows rotation of the Girder about transverse axis (Say
Y axis).
Roller assembly (i.e knuckle,
knuckle slab, rollers & Expansion base) permits longitudinal movement ( say along X axis) as per
requirement of design.
Therefore Rocker cum Roller bearing
permits both rotation and translation.
Rocker bearing (without roller assembly): Fig-2 may be seen below. This bearing can be used on the same span on
fixed end. Top part of the bearing i.e
saddle plate & saddle block rotates over knuckle of the bottom part
thus permitting only rotation about transverse axis (i.e Y-axis). There is no
scope of translation at this end.
Periodical cleaning & greasing is required on both
end at the interface of Knuckle and
saddle block and between rollers and Base plate for proper functioning of the
bearing. Therefore Rocker (without Roller
assembly) bearing permits rotation only.
Fig-2 |
Components
of roller cum rocker bearing (Fig-3):
a. Roller: The
steel of forging quality be used for the components of the bearings shall
comply with Class 3, 3A of IS:2004 and IS: 1875. These
have machined surface to permit smooth
rolling action.
b. Link plate: A bar loosely fixed at each end of the roller assembly
for connecting the individual rollers in
a nest and to facilitate movement of rollers in unison.
c. Tooth Bars: Tooth bars are provided on the extreme ends of a group of rollers. The tooth bars rest into grooves provided in the Knuckle Slab on top and expansion slab at the bottom with adequate clearance. The purpose of tooth bars is to restrict the movement of the rollers within the design movement.
c. Tooth Bars: Tooth bars are provided on the extreme ends of a group of rollers. The tooth bars rest into grooves provided in the Knuckle Slab on top and expansion slab at the bottom with adequate clearance. The purpose of tooth bars is to restrict the movement of the rollers within the design movement.
d. Rib and Notch: To arrest transverse movement of the girder and consequent
relative motion among knuckle slab assembly, roller and the expansion base, a notch in the middle of the roller and
a matching rib both on the base plate and Knuckle Slab are provided (Fig-3) . The rib thus guides the rollers to roll only in the longitudinal
direction and prevents any transverse movement of superstructure, keeping the girder in its original alignment.
However horizontal force if any in
transverse direction is transmitted to the substructure. ‘Guide
strip’ in the sliding bearings is doing the same function.
Connection of Saddle Plate (Fig-3): It is connected to bottom chord of the girder in tight
fit joint. Longitudinal force due to friction will transfer through this connection to the bed
block. Connection should be designed suitably with rivets or tight fit turned
bolts.
Only Roller bearings: Sole Roller bearings may be used where longitudinal movement is allowed only while transverse movement and rotation are not permitted or negligible. They consist of cylindrical rollers instead of a rocker in between the sole plate and the masonry plate. The cylinder made of high-grade steel rolls over the masonry plate to allow movement of the superstructure. Roller bearings can be in form of a single roller or multiple rollers as shown in the Fig-4, a multiple roller bearing.
Rotation of Roller bearing: Single roller
bearing will permit both translation and rotation but multiple rollers, without
combination of Rocker assembly, permits only
translation. Single roller bearings have a very limited vertical load capacity. Multiple roller bearings, on the other hand, may be able to support very
large loads.
Demerits of
Roller/Rocker Bearing
- Permits Rotation about transverse axis only. Hence can not fulfil the purpose of multi rotational bearing, not suitable for heavily loaded structure.
- Does not permit translation along transverse axis, leading to some force is transmitted to the substructure to take into account in the design of connection details.
- Maintenance cost is high. These bearings are made of steel only, thereby they are corrosion prone and require periodic cleaning, greasing, oiling which involves lifting of girder under traffic block. Freezing of bearing is also not uncommon thus affecting the bridge structure with additional restrained force.
- Seismic response is very poor. Basic material did not have dampening properties unlike elastomeric bearing.
- Not compatible with multi-rotational modern bridge bearings.
References:
1. Indian Railway Bridge Manual
2. Master of Science Thesis Stockholm, Sweden 2012
3. Bridge Bearing IRICEN, Pune India
4. IRC-83(part-III)
5. Bridge Bearings, Indian Association of structural Engineers. By Alok Bhowmick
3. Bridge Bearing IRICEN, Pune India
4. IRC-83(part-III)
5. Bridge Bearings, Indian Association of structural Engineers. By Alok Bhowmick
