Properties-Civil Engineering Reinforcement


1. TMT BARs:        Thermo Mechanically Treated Bars

2.  HYSD Bars:    High Yield Strength Deformed Bars

3. CTD Bars:        Cold Twisted Bars

4. Ultimate tensile strength (UTS)

of mild steel 410-470 N/mm2 (IS : 432 ( Part I ) –T-1)

5. Yield stress of mild steel         215-250 N/mm2         (Do)

6. UTS of medium tensile steel:    510-540 N/mm2         (Do)

7. UTS of high tensile steel:          1000-2200 N/mm2 ( Generally)

8. The modulus of elasticity of steel:

       200000 N/mm2.(CL. 5.6.3 of IS 456)

9. Properties of steel Beam/channel, rolled section:NBCC Part-6, Section 6 and P/13 of I.S. Code.

10. Hooks shall conform to: 10d or 75 mm whichever is maximum, d=diameter of reinforcement.

11. Minm. dia of Bars in Slab: 8mm

12. Maxm. diameter of reinforcinq bar:  shall not exceed 1/8th of slab Thickness

13. Minimum reinforcement of mild steel in slab:  0.15% of Gross cross sectional area of slab i.e 0.15 x B x D, B=1000mm, D=Overall depth of slab. 26.5.2.1 of IS456-2000

14. Minimum reinforcement of deformed steel in slab:  0.12% of Gross cross sectional area of slab i.e 0.15 x B x D, B=1000mm, D=Overall depth of slab. 26.5.2.1 of IS456-2000.

15. Minimum Tension reinforcement in Beam: Ast /(b*d)= 0.85/fy,

Ast. = minimum area of tension reinforcement,

b= Breadth of the beam,

d= effective depth of the beam.

fy= characteristics strength of reinforcement in N/mm2 (26.5.2.1 of IS456-2000)

16. Maximum Tension reinforcement in beam: 0.04*(b*D)

b= Breadth of the beam, D= overall depth of the beam: (26.5.1.1 of IS456-2000)

17. Maximum compression reinforcement in Beam: 0.04*(b*D)
b= Breadth of the beam, D= overall depth of the beam.(26.5.1.2 of IS456-2000).

18. Side face reinforcement where the depth of the web in a beam exceeds 750mm:
Not less than 0.1 percent of the web area and shall be distributed equally on two faces at a spacing not exceeding 300 mm or web thickness whichever is less.(26.5.1.3 of IS 456-2000)

19. Minimum dia of Bars in column:  12mm (26.5.3.1(d) of IS 456-2000)

20.Minimum longitudinal reinforcement in column: 0.8 % of the gross cross sectional area of the column (26.5.3.1 of IS 456-2000)

21. Maximum longitudinal reinforcement in column: 6 % of the gross cross sectional area of the column where no lapping of bars and 4% when lapping is provided. (26.5.3.1 of IS 456-2000).

22.The minimum number of longitudinal  bar provided in column: Shall be 04 in rectangular columns and 06 in circular columns.(26.5.3.1(C) of IS 456-2000)

23. Spacing of longitudinal bars measured along the periphery of the column shall not exceed: 300mm.(26.5.3.1(g) of IS 456-2000)

24.Lateral ties of column:
a. Bar Dia  max of the following two.
1) 1/4 of main Bar
2) 6mm.

b. Pitch least of the three
1) least lateral dimension of the column
2) 16 x Dia of the reinforcement
3) 300mm.

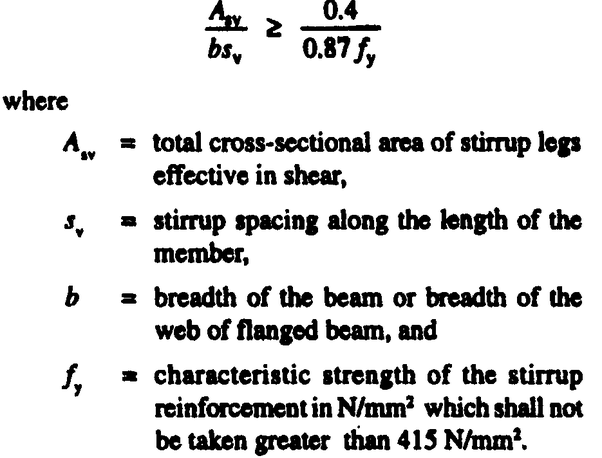

25Minimum shear reinforcement in the form of stirrups shall be calculated using,


26Maximum spacing of shear reinforcement: Shall not exceed 0.75 d for vertical stirrups and d for inclined stirrups at 45°where d is the effective depth of the secti on under consideration. 1n no case shall the spacing exceed 300mm.
(26.5.1.5 of IS 456-2000).

27. Nominal Cover to Meet Durability Requirements: Table 16  of IS-456

Exposure                           Nominal Conc. Cover not Less Than


Mild                                                                         20mm

Moderate                                                                30 mm

Severe                                                                     45 mm

Very severe                                                             50 mm

Extreme                                                                 75 mm





 28. Weight of Reinforcement:

One can calculate weight of reinforcement as per following:

Considering dia of reinforcement: 20mm.

Area of one bar Ï€*d^2/4=(3.141592*(0.020)^2)/4=3.141592*10^(-4) m2

Volume of 1 m length, V= Area x 1m.= 3.141592*10^(-4) x 1= 3.141592*10^(-4) m3

Unit wt. of steel, p=7850 kg/m3

Weight per m. length = V*p= 3.141592*10^(-4) m3 x 7850 kg/m3 = 2.47kg.


Dia in mm:                                  Unit Wt in Kg/m

6mm                                                      0.22

8mm                                                      0.395

10mm                                                    0.62

12mm                                                    0.89

14mm                                                    1.21

16mm                                                    1.58

18mm                                                     2.0

20mm                                                    2.47

22mm                                                     2.98

25mm                                                     3.86

28mm                                                     4.83

32mm                                                     6.32

36mm                                                     8.0

40mm                                                     9.88

Cross sectional area of Bar

Dia in mm:                                         C/s Area sqcm

6mm                                                     0.283

8mm                                                     0.50

10mm                                                   0.785

12mm                                                   1.131

14mm                                                   1.53

16mm                                                   2.01

18mm                                                   2.54

20mm                                                   3.14

22mm                                                   3.80

25mm                                                   4.91

28mm                                                   6.158

32mm                                                   8.04

36mm                                                   10.18

40mm                                                   12.566

28: Minimum Lap of Reinforcement=50D, where D is the diameter of BAR.

29. Check for maximum spacing of reinforcement in Slab as per Cl-      26.3.3 of IS 456: 2000

  1. 3 x Effective depth of the slab.

  2. or 300mm whichever is smaller

30. Check for Minimum spacing of bars: shall usually be not less than            the

  1. Diameter of the bar if all bars of equal diameter

  2. Diameter of the larger bar if bars are of unequal dia and

  3. 5mm more than the nominal maximum size of aggregate.

31. Spacing of Distribution Steel: As per Cl. 26.3.3 of IS 456–2000

The horizontal distance between parallel reinforcement bars provided against shrinkage and temperature shall not be more than five times the effective depth of a solid slab or 450 mm whichever is smaller.

32. Essential Check

1. All reinforcement shall be free from rust, loose scales, mud, oil, free from paint.
